Ionic liquid alkylation process produces high-quality gasoline

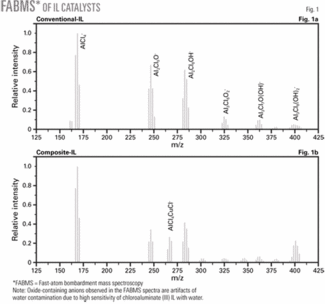

Fast-atom bombardment mass spectrometry (Fig. 1) and 27Al nuclear magnetic resonance (NMR, Fig. 2) show that a relatively high quantity of multi-center ligands of AlCl4CuCl- are formed in the composite-IL catalyst. By comparison, only a few AlCl4CuCl- ligands were detected in the IL-CuCl system when CuCl was added to a conventional-IL catalyst.16

null

Pilot plant

Extensive bench-scale laboratory tests were conducted to optimize the composite-IL catalyst’s performance in alkylating isobutane.10 The ionikylation process was demonstrated in a continuous-flow pilot unit with 4-l./hr equivalent alkylate gasoline production for 60 days.

Fig. 3 shows the process flow diagram of the pilot unit. The pilot unit was constructed from carbon steel.

The composite-IL catalyst used in the pilot test unit was prepared commercially with industrial-grade chemicals. This was done to determine the effect of impurities on the composite-IL catalyst due to isobutane alkylation reactions. The composite-IL catalyst was also subjected to an aging test by storing it in a tank for 8 months before the pilot test.

Fresh feed was a mixture of isobutane and a heavy C4 fraction (primarily butene-2) in a 1:1 ratio. These streams were obtained from a commercial refinery. Fresh feed, recycled isobutane, and a mixture of excess isobutane and alkylate gasoline from the top of the settler were fed to the first static mixer.

The stream from the first static mixer was combined with the recycled composite-IL catalyst and fed to the second static mixer where the isobutane alkylation reactions occurred at 15° C. and 0.4 MPa.

Reaction products then flowed to a settler. The composite-IL catalyst, which is heavier than alkylate gasoline, was collected from the bottom of the settler and recycled and reused. A split stream of excess isobutane and alkylate gasoline at the top of the settler were recycled to the first static mixer. Remaining products from the top of settler were fed to a fractionation column.

Isobutane at the top of the fractionation column was cooled and recycled to the first static mixer. It maintained a relatively high isobutane-to-olefin (I:O) ratio and low reaction temperature. Product n-butane and alkylate gasoline were obtained from the middle and bottom of fractionation column, respectively.

The overall I:O ratio of reactants in the reactor was 500, which was controlled with the flow rate of recycled isobutane and the mixture of excess isobutane and alkylate gasoline. The reaction time was 10 min, which depended upon the residence time in the second static mixer and sedimentation time in settler.

The volumetric ratio of composite-IL catalyst to the stream from the first static mixer was 1.2. This was done to maintain the composite-IL catalyst as a continuous liquid phase, which helped achieve high TMP selectivity.

Ionikylation performance

Olefin conversion was constantly more than 99% for the entire pilot test period.

Table 1 summarizes the product yield and properties of alkylate gasoline. The C8 yield in alkylate gasoline was higher than 95 wt % and the yield of TMPs was 90%.

The ratio of TMPs to dimethylhexanes (DMHs) in alkylate gasoline is an important key criterion for comparing the performance of alkylation catalysts. Alkylate from the composite-IL catalyst had a high TMP:DMH ratio, indicating that a relatively small amount of undesirable side reactions such as isomerization and cracking occurred. The high C8 yield and TMP selectivity of composite-IL catalyst are due to high concentration of AlCl4CuCl- ligands.

Performance of the ionikylation process in the continuous pilot test was comparable to that of the bench-scale test. This shows that the commercial composite-IL catalyst performed in a similar manner as that developed in the laboratory, and its activity was stable.

Neither the composite-IL catalyst nor its decomposed species was detected in alkylate gasoline, indicating good separation of composite-IL catalyst from alkylate gasoline and chemical stability of composite-IL catalyst. Metallurgical inspection of the pilot unit indicated that no detectable corrosion occurred in the process units during the 60-day continuous pilot test.

Also included in Table 1 are performance data of H2SO4 and HF catalyzed isobutane alkylation processes.17 In general, the ionikylation process produces a higher-quality alkylate gasoline than either H2SO4 or HF alkylation processes.

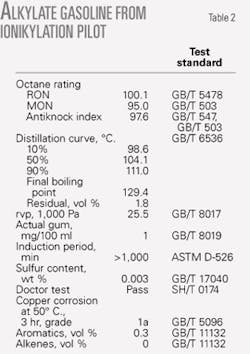

Table 2 lists the detailed properties of alkylate gasoline produced by the ionikylation process. The quality of product from the ionikylation process exceeded the specifications for gasoline, such as higher RON and MON, lower rvp, and temperature at 50% and 90% distillation yield.

Benefits

Operating conditions in the ionikylation process are similar to those of commercial H2SO4 and HF alkylation processes. The reactor used in ionikylation, however, is a commercial static mixer that is much simpler and cheaper than the reactor used in the H2SO4 alkylation process.

Because ionikylation uses a composite-IL catalyst that is noncorrosive, carbon steel can be used for the hardware such as reactors, piping, tanks, pumps, and valves. The control corrosion test of the composite-IL catalyst on carbon steel indicated that the corrosion rate was less than 0.001 mm/year.

Ionikylation can be easily retrofitted to an existing H2SO4 or HF alkylation unit.

Commercialization

The successful demonstration of the ionikylation process prompted PetroChina to retrofit an existing 65,000-tonne/year (tpy) H2SO4 alkylation unit (Fig. 4). A new surge tank was added to recycle the composite-IL catalyst and allow the spent catalyst to settle.

The internals of the settler were modified to enhance the separation of composite-IL catalyst from alkylate gasoline. The operating conditions in the selective hydrogenation unit were modified to meet the required concentration of 2-butene in the feed C4 fraction for ionikylation.

Table 3 shows commercial performance data before and after the retrofit. The yield and RON of commercial ionikylation alkylate gasoline are 75 wt % (based on the amount of C4 fraction from the MTBE unit upstream) and 98.8, respectively. This is higher than the yield and RON from H2SO4 alkylation (73 wt % yield and 95 RON) before the retrofit.

The retrofit also increased the process unit’s capacity by 40%, to 248 tonnes/day (tpd) from 180 tpd. The economics of increased yield and RON of alkylate gasoline from ionikylation are attractive, even though the cost of the composite-IL catalyst is more than H2SO4.

Compared with the pilot test results, the commercial performance of retrofitted ionikylation was less than optimal. This is due to the use of an existing Stratco reactor system, which has a long reaction time.

This results in increased side reactions such as cracking and isomerization, which form light and heavy components in alkylate gasoline. These are evident from the shift in distillation temperature at 10% yield (81.5° C. vs. 98.6° C.) and final boiling point (154° C. vs. 129.4° C.) when comparing the pilot results with those of the retrofitted unit.

We are currently conducting process optimization work to improve the commercial performance of ionikylation further by varying the size and type of static mixer and potentially replacing the Stratco reactor with a static mixer to minimize reaction time.
