ENVIRONMENTAL MITIGATION-1: Monitoring, analysis show rapid Gulf of Mexico seafloor recovery

Jan. 1, 2007
Hard-live bottom areas affected by the 2001 construction of Gulfstream Natural Gas System LLC’s 36-in., 419-mile offshore pipeline between Mobile Bay, Ala. and Tampa Bay, Fla. have largely recovered, in the face of permitting expectations that this process would take roughly 100 years.

Hard-live bottom areas affected by the 2001 construction of Gulfstream Natural Gas System LLC’s 36-in., 419-mile offshore pipeline between Mobile Bay, Ala. and Tampa Bay, Fla. have largely recovered, in the face of permitting expectations that this process would take roughly 100 years.

The term “hard-live bottom” refers to seafloor that is both hard (as opposed to such other possibilities as sandy, silty, etc.) and life-sustaining. Community structure does not appear to be significantly different between reference and affected areas. Visible disturbance also appears to be minimal as compared to predicted effects.

Background

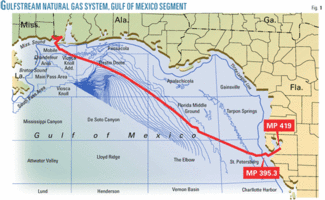

Hard-live bottom makes up the most significant and sensitive marine benthic resource in the federal waters portion of the Gulfstream pipeline (Fig. 1). Gulfstream conducted numerous pre-construction field investigations of the biological distribution and physical characteristics of hard-live bottom near the pipeline route and reduced potential damage through not only its siting efforts but also use of technologies such as the submarine plow and the deployment of buoys on construction barge anchor cables.

Click here to enlarge image

US Army Corps of Engineers and Minerals Management Service permits and Federal Energy Regulatory Commission certificate requirements obligated Gulfstream to measure and mitigate effects of the construction of the marine pipeline and to monitor the recovery of affected areas.

Before construction, Gulfstream prepared a federal mitigation plan that established the monitoring and mitigation protocols to be implemented to satisfy permit conditions. This plan required Gulfstream to conduct monitoring activities to determine the extent and severity of project construction effects on hard-live bottom areas within the trench corridor and associated spoil mounds and anchor strike-cable sweep locations.

Part 1 of this article, presented here, details the methodology of Gulfstream’s monitoring activities. Subsequent parts will discuss the results of its monitoring program and examine the use of pipeline habitat replacement structures by fish and epifauna.

Gulfstream established and monitored random 25-m transects perpendicular to the trench corridor and spoil mounds, within identified anchor strike and cable sweep locations in hard-live bottom areas, and also in unaffected hard-live bottom reference habitats.

Design stratification

The federal mitigation plan considered depth to be a key variable in hard-live bottom recovery due to the specifications of pipeline siting and biological community characteristics. In waters less than 200-ft deep, Gulfstream lowered the pipeline into an excavated trench with the expectation that the trench spoil would naturally backfill over time. During construction, hard substrate in some areas prevented excavation of a trench with a postlay plow. Pipeline anchors stabilized these portions of the pipeline. Plans did not require the pipeline to be trenched beyond the 200-ft contour.

The hard-live bottom habitat at all water depths along the route generally consists of low-relief algal sponge communities of algae, sponges, bryozoans, ascideans, and ahermatypic hard corals, with octocorals dominant in shallower depths.

To assess potential depth-related effects on hard-live bottom recovery, Gulfstream stratified the monitoring design into three depth zones; Depth Zone 1 (40-70 ft), Depth Zone 2 (70-100 ft), and Depth Zone 3 (100-200 ft). Gulfstream did not visit depths beyond the 200-ft contour during the 2005 assessment due to above-average hurricane activity.

Monitoring equipment

The scope of the 2005 field survey required use of monitoring vessels, depth profilers, differential global positioning systems (DGPS), navigational software, remotely operated vehicles (ROV) with video cameras, and underwater digital still camera systems.

  • Monitoring vessels. The Tracy Gayle (30-ft vessel for shallow water surveys) and Miss Casey (62-ft vessel for deepwater surveys) performed survey operations during the 2005 monitoring effort. Both vessels used the following survey equipment, as well as a boom arm extension to which a hydrophone was fixed to receive transmissions from the underwater trackpoint system.
  • Depth profiler (single beam). A single-frequency (340 kilo-hz) Odom Hydrotrac depth sounder provided depth profiles.
  • DGPS. An Ashtech BR2G DGPS receiver established positioning of the monitoring vessel using US Coast Guard differentially corrected signals transmitted from Egmont Key, Fla. (Radio Beacon ID 812). The Tracy Gayle also used the Furuno GPS system.
  • Navigational software. A Hypack integrated navigation system (INS) performed survey pre-plotting, positioning tasks, and provided a display allowing the survey vessel helmsman to navigate the survey transects and ROV positioning.
  • ROV. A Phantom S2 remotely operated vehicle collected all video data unless otherwise specified. The ROV uses a high-resolution video camera to quantify sampling stations (e.g., transects, boundary delineations) and document general site conditions. Hypack navigational software, coupled with the ROV Trackpoint system, allowed for real-time positioning information.
  • Digital still camera. An Olympus Camedia C-5060 wide-angle digital camera with 5.1 megapixel capacity collected transect and photostation photographs. An Olympus PT-020 underwater housing with a retractable rod affixed to the bottom of the housing held the camera.

    The retractable rod allowed divers to accurately maintain a fixed distance from the seafloor during photograph collection and subsequently maintain a fixed scale in each transect photograph for analysis.

    The camera flash and two diver lights mounted on the camera housing provided lighting for the transect photographs.

    Transect establishment

    Gulfstream established a total of 136 transects within the stratified depth zones in compliance with the federal mitigation plan (Table 1). All transects contained hard-live bottom habitat. Survey divers collected photograph transect data in Depth Zone 1. Either survey divers or ROV collected transect data in Depth Zones 2 and 3.

    Click here to enlarge image

    The analysis used randomly selected 25-m transect lengths within both affected and unaffected hard-live bottom areas to facilitate comparison. Gulfstream established the random transects perpendicular to the pipeline to assess trenched pipeline corridor, reference habitat, and anchor strike areas.

    Transect coordinates provided to the field survey crews and entered into the vessel’s navigation system before deployment allowed the survey vessel to navigate to the appropriate locations, where either survey divers or ROV were deployed.

    Survey divers navigated to each Depth Zone 1 transect coordinate end point and established a transect end point marker. After establishing the transect end points, survey divers measured each transect with a weighted tape measure to verify the transect length.

    In Depth Zones 2 and 3, survey divers used one end point coordinate and a defined azimuth for each transect. After navigating to the end point, survey divers extended a weighted tape measurer 25 m along the defined azimuth direction and established the second transect end point. The digital still camera then collected photographs along the transect length.

    Collecting sequential, overlapping photographs that contained a clear view of the tape measure within each frame ensured complete transect coverage and photograph position references. An ROV first navigated to one transect end point coordinate utilizing the Hypack Integrated Navigation System to ensure accurate positioning. Once at the end point, the ROV navigated down the length of each transect, collecting video 2 ft above the seafloor. The ROV’s two-point laser system ensured consistent height above the substrate.

    Reference habitat transects represent delineated hard-live bottom areas close to the pipeline corridor but not affected by project construction activities. These transects serve as a reference for statistical comparison to affected hard-live bottom areas. Comparisons between the two allowed assessment of the effect of pipeline construction.

    Delineating of hard-live bottom areas relatively close to the pipeline route took place before pipeline construction, during the permitting phase of the project. The survey team entered hard-live bottom polygons, the pipeline corridor route, and depth-zone demarcations into a GIS. Unaffected hard-live bottom polygons outside the pipeline corridor served as potential reference habitat transect locations. GIS then randomly selected 10 transect coordinates per depth zone.

    Routing the pipeline to avoid large areas of hard-live bottom minimized potential effects on these areas within the trenched pipeline corridor. Further precautions included use of construction methods determined to significantly reduce hard-live bottom damage during pipeline lowering.

    Plans called for the pipeline to be placed in an excavated trench 3 ft below the natural seafloor elevation in water less than 200-ft deep. This approach would provide pipeline stability under severe storm conditions based on storm models. Predictions foresaw trenching impacts 75-ft wide, based on a 25-ft wide trench corridor, with associated spoil mounds spreading 25 ft to either side of the trench. The anticipation that the trench would backfill through natural sediment transport made backfilling in federal waters unnecessary. Plans did not require trenching the pipeline corridor in water more than 200-ft deep.

    Gulfstream divided the assessment of hard-live bottom affected by pipeline trenching between the trench corridor and the associated trench spoil mounds. Spoil containing rock would serve as hard substrate for epifaunal-epifloral colonization. Independently collecting and analyzing transects within each category determined the amount of damage and recovery attributed to each feature.

    Preconstruction studies indicated that some hard-live bottom would be affected during construction as a result of mooring the lay barge and plow barge. Vessel anchors can affect hard-live bottom when anchors are placed, set, and lifted from the seafloor. Anchor cables can also affect benthic habitats when the barges are winched forward with anchors in place.

    A portion of the heavy anchor cable rests and sweeps along the seafloor in an arc as the barge is pulled ahead. Gulfstream minimized potential damage from anchor handling by attempting to place the anchors in areas where hard-live bottom did not occur and by using midline buoys on anchor cables to minimize the size of cable sweeps.

    The federal mitigation plan required postconstruction monitoring at up to 25 anchor strike and cable sweep locations documented to have occurred in hard-live bottom areas.

    Data recorded by the anchor-handling vessel’s onboard computer identified potential anchor strike and cable sweep locations based on construction-collected coordinates. Identifying each anchor drop and lift location with a unique number produced a pair of coordinates for each anchor drop-lift event and associated cable sweep.

    Overlaying these coordinate pairs on the affected hard-live bottom polygons in GIS generated a list of potential anchor strike or cable sweep locations. Postconstruction side-scan sonar records, examined for evidence of seafloor disturbance from anchors or anchor cables, also identified anchor strike and cable sweep locations. A random-selection process then determined locations to be visited for monitoring.

    Divers or the ROV deployed at each random transect location searched for evidence of seafloor disturbance attributable to anchors and anchor cables. Evidence of damage would prompt measurement of the affected area’s areal extent and establishment of transects within the affected area.

    If no disturbance was identified at or near the given location, the divers or ROV searched the periphery of the area in order to survey all potentially affected areas. Failure to find evidence of damage after all of these steps had been taken would prompt the assumption that the area had recovered naturally over time.
