    EASTERN GULF OF MEXICO-3: New assessment offered for W. Florida shelf, slope

    Feb. 4, 2002
    This assessment takes into account new views on the depositional history and the petroleum habitat of the West Florida shelf and slope and attempts to strike a balance between a liberal and a conservative appraisal approach.

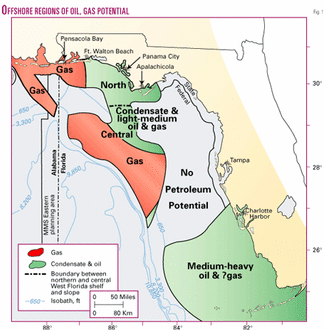

    Th 83318

    This assessment takes into account new views on the depositional history and the petroleum habitat of the West Florida shelf and slope and attempts to strike a balance between a liberal and a conservative appraisal approach.

    The assessment is based on established or suggested depositional trends in the same petroleum system and on extrapolation of reservoir and petroleum charge-retention parameters from close reference fields.

    The published structural information on the offshore territory is limited, not cohesive, and not detailed enough that it could be used consistently in this assessment. Therefore, structural trap analogies are applied here in a general manner to the extent that they can be made with a fair degree of confidence. Stratigraphic traps are taken into consideration.

    To reflect the importance given here to the presence of a thermally mature, rich, and thick petroleum-generating source rock, that parameter is rated higher than the other assessment parameters. The here-determined amounts of petroleum resources are not risk-weighted. Their chance of discovery is simply rated as "probable" and "possible."

    The first and second parts of this series of articles addressed the depositional history (OGJ, Jan. 21, 2002, p. 26) and petroleum habitat (OGJ, Jan. 28, 2002, p. 48) of the West Florida shelf and slope.

    North-Central province

    On the northern West Florida shelf in OCS waters, the already discovered Destin Dome Block 56 field off Pensacola contains recoverable reserves of 2.6 tcf of dry gas in the Norphlet play.37

    In addition, the segment from the offshore projected Florida-Alabama state line to the longitude of Fort Walton Beach (Fig. 1) yields in state and OCS waters probably another undiscovered, recoverable dry gas resource of 8 tcf in the Norphlet play. That estimate takes into account:

    • The Mobile Bay region's 10.5 tcf of discovered dry gas.36
    • Destin Dome Block 56 field's gas reserves.
    • The special depositional setting of Norphlet reservoirs.
    • The presence of a regional, high-quality Smackover petroleum source rock.
    • Trapping possibilities.
    • The size of the undrilled territory.

    When considering the lack of discovery of commercial petroleum accumulations in the Smackover play, apparently due to the absence of effective porosity development, anywhere on the well-explored shelf off Alabarna and off the western Florida Panhandle, there remains the possibility of discovering only up to 0.5 tcf of recoverable dry gas in the Smackover play.

    From the longitude of Fort Walton Beach to east of Apalachicola (Fig. 1), recoverable gas-condensate and light to medium-grade oil resources of 800 million bbl with 1.5 tcf of associated gas can probably exist in the Norphlet play in state and OCS waters. That estimate is based on:

    • The regional offshore eastward shallowing of the Norphlet formation.
    • The analogy to the onshore Jay-Flomaton trend in the north where petroleum is being produced from Norphlet-Smackover petroleum system from a comparable depth.
    • The gas-condensate and oil shows in the Norphlet play in four wells in that area.
    • The oil show in the Norphlet play onshore in one well.
    • The potential thickness and favorable reservoir properties of Norphlet reservoirs.

    The chance of discovering recoverable gas-condensate and light to medium-grade oil resources in the conventional Smackover play is low and will possibly not exceed 50 million bbl, with 0.15 tcf of associated gas, even when considering the occurrence of oil shows in the Smackover formation in two onshore wells.

    Two seismic anomalies mapped south of Apalachicola in state waters and interpreted to represent Smackover biogenetic mounds51 require drilling to confirm their existence and effective porosity. Several similar anomalies apparently occur in the vicinity (B. Faulkner, written communication).

    It is possible that recoverable resources of additional 100 million bbl of light to medium-grade oil with 0.25 tcf of associated gas can be discovered in the eastern segment of the northern West Florida shelf in such stratigraphic Smackover traps.

    Th 83318

    Click here to enlarge image

    In OCS waters on the outer portion of the central West Florida shelf and slope off Tampa (Fig. 1), there exists a never-before considered region, so far only vaguely defined by seismic, that is geologically contiguous with the northern West Florida shelf. That territory was not included in the MMS assessment of the OCS.1

    The potential distribution of favorable eolian Norphlet sandstone across that large region can make the outer central West Florida shelf and slope more attractive to future petroleum exploration off Florida than the northern West Florida shelf. The same assessment parameters used for the northern West Florida shelf have been applied to the central West Florida shelf and slope.

    Recoverable Norphlet petroleum resources on the outer central West Florida shelf and slope can reach probably 400 million bbl of gas-condensate or light to medium-grade oil with 0.75 tcf of associated gas and 22 tcf of dry gas. Conventional recoverable Smackover petroleum resources in these waters can possibly amount to 100 million bbl of gas-condensate or light to medium-grade oil, with 0.25 tcf of associated gas, and 1.5 tcf of dry gas.

    The stratigraphic Smackover play can yield possibly additional recoverable resources of 100 million bbl of gas- condensate or light to medium-grade oil, with 0.25 tcf of associated gas. There exists no known petroleum source on the central West Florida shelf within 100 miles from the Florida Peninsula coast.

    The northern West Florida shelf can contain in state and OCS waters probably 800 million bbl of recoverable gas-condensate and light to medium-grade oil resources and 9.5 tcf of recoverable gas resources, and possibly 150 million bbl of recoverable gas-condensate and light to medium-grade oil resources and 0.9 tcf of recoverable gas resources.

    The central West Florida shelf and slope can yield probably 400 million bbl of recoverable gas-condensate and light to medium-grade oil resources and 22.75 tcf of recoverable gas resources and possibly 200 million bbl of recoverable gas-condensate and light to medium-grade oil resources and 2 tcf of recoverable gas resources.

    In total, the North-Central petroleum province can hold in state and OCS waters undiscovered recoverable gas-condensate and light to medium-grade oil resources of 1.2-1.55 billion bbl and undiscovered recoverable gas resources of 32.25-35.15 tcf.

    Southern petroleum province

    On land, the oil-producing Sunniland trend owes its existence to an optimal petroleum source development close to Sunniland reservoirs of bioclastic buildup, with improved effective porosity due to leaching and partly due to dolomitization. It will require a considerable exploration effort to locate the same combination of effective reservoir, optimal mature oil source, and stratigraphic-structural trapping on the southern West Florida shelf. Encouraging shows of oil and gas were encountered on land at five additional levels.

    South of the latitude of Charlotte Harbor, a regional seismic survey across OCS of the southern West Florida shelf5 revealed the presence of numerous large structural closures from Dollar Bay to Bone Island level. The structural anomalies are thought to be carbonate buildups. Their vertical relief reaches 400 ft (B. Faulkner, written communication).

    The geologic section beneath the southern West Florida shelf can contain multiple plays that yield possibly gas or gas-condensate and probably medium to heavy-grade oil (Fig. 1).

    The Sunniland play is considered to be the primary offshore exploration target in state and OCS waters. The Dollar Bay play represents a secondary exploration target.

    Brown Dolomite and upper Pumpkin Bay plays are encouraging exploration targets on the OCS. Uncertainties exist, however, about regional reservoir development in the upper Pumpkin Bay play, about the regional extent of effective porosity in the Brown Dolomite play, and about its petroleum charge. The two plays are considered to have greater potential offshore than onshore.2 4

    The Brown Dolomite play is ranked here as a probable play and tertiary exploration target and the upper Pumpkin Bay play as a possible play.

    The existence of a Lake Trafford play offshore is uncertain. It cannot be excluded that gas and gas-condensate resources exist on the southern Florida shelf in state and OCS waters in a not yet assessable Wood River play.

    Recoverable medium-grade oil resources of 100 million bbl can possibly be attributed to the upper Pumpkin Bay play, even if the current knowledge of the extent of its reservoir and petroleum source, and of its trap development, is limited.

    Lacking access to the mapping of structures on the OCS,5 analogies have to be drawn from the petroleum habitat on the buried Sarasota arch, the Florida Peninsula, and the Florida Keys. They suggest that the Brown Dolomite play can contain offshore probably recoverable resources of 300 million bbl of medium-grade oil, the Sunniland play probably 550 million bbl of medium-grade oil, and the Dollar Bay play probably 350 million bbl of heavy to medium-grade oil.

    The volume of associated gas is difficult to predict because of the uncertain GOR. Any offshore oil fields will definitely contain more gas-saturated oil than onshore.

    In total, the Southern petroleum province can hold in state and OCS waters undiscovered, recoverable medium to heavy-grade oil resources of 1.2-1.3 billion bbl, with undetermined amounts of gas.

    Acknowledgments

    The author appreciates the following for pre-submission reviews: B.M. Faulkner, consultant, and R.M. Mink, Geological Survey of Alabama, each an expert on a separate segment of the study area. J.M. Lloyd and W. Schmidt, Florida Geological Survey; W.G. Frost, formerly Mobil Oil; and Gary Goeke and several others at the MMS helped with information.

    The author

    Klaus H. Gohrbandt ([email protected]) is a retired geologist living in Gulf Breeze, Fla. He held assignments with increasing responsibilities in oil and gas exploration with Mobil Oil in Austria and Libya in 1957-70, Deminex in Germany and Nigeria in 1970-75, OMV in Austria in 1975-81, and Gulf-Chevron Overseas in the US in 1981-95. He has a PhD degree in geology from the University of Vienna.

    null

    References for West Florida shelf, slope geologic data

    1. Lore, G.L., Ross, K.M., Bascle, B.I., Nixon, L.D., and Klazynski, R.J., "Assessment of conventionally recoverable hydrocarbon resources of the Gulf of Mexico and Atlantic Outer Continental Shelf as of Jan. 1, 1995," Minerals Management Service, Gulf of Mexico Region, OCS Report 99-0034, 1999, (CD-ROM).
    2. Gautier, D.L., Dolton, G.L., Takahashi, K.I., and Varnes, K.L., "1995 National Assessment of United States oil and gas resources-Results, methodology, and supporting data," USGS Digital Data Series 30, 1995, (CD-ROM) and USGS Circular 1118, 1995, 20 p.
    3. Anderson, C.P., Schenk, C.J., and Pollastro, R.M., "Oil and gas plays (1995), federal lands, and land use-Land cover of the onshore Gulf coast region of the United States," USGS Open File Report 99-558, 1999 (CD-ROM).
    4. Pollastro, R.M., Schenk, C.J., and Charpentier, R.R., "Undiscovered oil and gas in the Big Cypress National Reserve-A total petroleum system assessment of the South Florida Basin, Florida," USGS Open File Report 00-317, 2000, 31 p.
    5. Faulkner, B.M., and Applegate, A.V., "Hydrocarbon exploration evaluation of the Pulley Ridge area, offshore South Florida basin," GCAGS Transactions, Vol. 36, 1986, pp. 83-95.
    6. Gohrbandt, K.H., "West Florida shelf and slope prime target for gas, oil in eastern Gulf of Mexico," OGJ, June 11, 2001, pp. 41-48.
    1. Bryant, W.R., Meyerhoff, A.A., Brown, N., Furrer, F., Pyle, T., and Antoine, J.W., "Escarpments, reef trends, and diapiric structures, eastern Gulf of Mexico," AAPG Bull., Vol. 53, 1969, pp. 2,506-42.
    2. Dobson, L.M., and Buffler, R.T., "Seismic stratigraphy and geologic history of Jurassic rocks, Northeastern Gulf of Mexico," AAPG Bull., Vol. 31, 1997, pp. 100-120.
    3. Salvador, A., "Triassic-Jurassic" in Salvador, A., ed., "The Gulf of Mexico Basin," GSA, "The geology of North America," Vol. J, 1991, pp. 131-180.
    4. Winston, G.O., "Atlas of structural evolution and facies development on the Florida-Bahamas Platform-Triassic through Paleocene," Miami Geological Society, 1991, 39 p.
    5. Winston, G.O., "The Middle Jurassic Louann Formation (with notes on the probable Louann origin of the 'Smackover' salt," Miami Geological Society, 1992, 27 p.
    6. Mink, R.M., Bearden, B.L., and Mancini, E.A., "Regional Jurassic geologic framework of Alabama coastal waters area and adjacent federal waters area," Geological Survey of Alabama Oil and Gas Report 12, 1985, 52 p.
    7. Ball, M.M., Martin, R.G., Foote, R.Q., and Applegate, A.V., "Structure and stratigraphy of the western Florida Shelf," USGS Open File Report 88-439, 1988, 60 p.
    8. MacRae, G., and Watkins, J.S., "Basin architecture, salt tectonics, and Upper Jurassic structural styles, DeSoto Canyon salt basin, northeastern Gulf of Mexico," AAPG Bull., Vol. 77, 1993, pp. 1,809-24.
    1. Salvador, A., "The Gulf of Mexico Basin," GSA, "The geology of North America," Vol. J, 1991, 568 p.
    2. Winkler, C.D., and Buffler, R.T., "Paleogeographic evolution of early deep-water Gulf of Mexico and margins, Jurassic to Middle Cretaceous (Comanchean)," AAPG Bull., Vol. 72, 1988, pp. 318-346.
    3. DeBalko, D.A., and Buffler, R.T., "Seismic stratigraphy and geologic history of Middle Jurassic through Lower Cretaceous rocks, deep eastern Gulf of Mexico," GCAGS Transactions, Vol. 42, 1992, pp. 89-105.
    4. Marzano, M.S., Pense, G.M., and Andronaco, P., "A comparison of the Jurassic Norphlet Formation in Mary Ann field, Mobile Bay, Alabama to onshore regional Norphlet trends," GCAGS Transactions, Vol. 38, 1988, pp. 85-100.
    5. Ahr, W.M., "The carbonate ramp-an alternative to the shelf model," GCAGS Transactions, Vol. 23, 1973, pp. 21-25.
    6. Tew, B.H., Mink, R.M., Mancini, E.A., Mann, S.D., and Kopaska-Merkel, D.C., "Regional geologic framework and petroleum geology of the Smackover Formation, Alabama and Panhandle Florida coastal waters area and adjacent federal waters area," Geological Survey of Alabama Bull. 154, 1993, 60 p.
    7. Mitchell-Tapping, H.J., "Jurassic and Triassic hydrocarbon exploration of southern Florida," GCAGS Transactions, Vol. 44, 1994, pp. 507-513.
    8. Applin, P.L., and Applin, E.R., "The Comanche Series and associated rocks in the subsurface in Central and South Florida," USGS Professional Paper 447, 1965, 83 p.
    1. Applegate, A.V., Winston, G.O., and Palacas, J.G., "Subdivision and regional stratigraphy of the pre-Punta Gorda rocks (lowermost Cretaceous-Jurassic?) in South Florida," supplement to GCAGS Transactions, Vol. 31, 1981, pp. 447-453.
    2. Winston, G.O., "Regional structure, stratigraphy, and oil possibilities of the South Florida basin," GCAGS Transactions, Vol. 21, 1971, pp. l5-29.
    3. McFarlan, E., and Menes, L.S., "Lower Cretaceous" in Salvador, A., ed., "The Gulf of Mexico Basin," GSA, "The geology of North America," Vol. J, 1991, pp. 181-204.
    4. Petty, A.J., "Ferry Lake, Rodessa, and Punta Gorda anhydrite bed correlation, Lower Cretaceous, offshore eastern Gulf of Mexico," GCAGS Transactions, Vol. 45, 1995, pp. 487-493.
    5. Petty, A.J., "Northeast Gulf's James, Andrew exploration history outlined," OGJ, Nov. 1, 1999, pp. 94-101.
    6. Lloyd, J.M., "1986 and 1987 Florida petroleum production and exploration," FGS Information Circular 106, 1989, 36 p.
    7. Applegate, A.V., Pontigo, F.A., Jr., and Rooke, J.H., "Jurassic Smackover oil prospects in the Apalachicola embayment," OGJ, Jan. 23, 1978, pp. 80-84.
    8. Pontigo, F.A., Jr., "Pre-Haynesville stratigraphy and structural geology of the Apalachicola embayment: Petrology and paleoenvironmental interpretation of the Smackover Formation," unpublished master's thesis, Florida State University, 1982, 307 p.
    9. Oehler, J.H., "Carbonate source rocks in the Jurassic Smackover trend of Mississippi, Alabama, and Florida," in Palacas, J.G., ed., "Petroleum geochemistry and source rock potential of carbonate rocks," AAPG Studies in Geology 18, 1984, pp. 63-69.
    10. Mancini, E.A., Mink, R.M., and Bearden, B.L., "Integrated geological, geophysical, and geochemical interpretation of Upper Jurassic petroleum trends in the eastern Gulf of Mexico," GCAGS Transactions, Vol. 36, 1986, pp. 219-226.
    1. Claypool, G.E., and Mancini, E.A., "Geochemical relationships of petroleum in Mesozoic reservoirs to carbonate source rocks of Jurassic Smackover Formation, Southeastern Alabama," AAPG Bull., Vol. 73, 1989, pp. 904-924.
    2. Bolin, D.A., Mann, S.D., Burroughs, D., Moore, H.E., Jr., and Powers, T.J., "Petroleum atlas of southwestern Alabama," Geological Survey of Alabama Atlas 23, 1989, 218 p.
    3. Alabama State Oil & Gas Board, "December 2000 Alabama production summary by field," home page, http://www.ogb.state.al.us
    4. Plater, J.R., Kelley, J.Q., Wade, W.W., and Mott, R.T., "Economic effects of coastal Alabama and Destin Dome offshore natural gas exploration, development, and production," MMS Gulf of Mexico Region, OCS Report 2000-2044, 2000, 115 p.
    5. Chevron USA home page, "Complaint-U.S. Court of Federal Claims (Chevron-Conoco-Murphy)," http://www.chevron.com/newsvs/pressrel.html, 07.24.2000.
    6. Tew, B.H., Mink, R.M., Mann, S.D., Bearden, B.L., and Mancini, E.A., "Geologic framework of Norphlet and pre-Norphlet strata of the onshore and offshore eastern Gulf of Mexico area," GCAGS Transactions, Vol. 41, 1991, pp. 590-600.
    7. Ottmann, R.D., Keyes, P.L., and Ziegler, M.A., "Jay field-A Jurassic stratigraphic trap," GCAGS Transactions, Vol. 23,1973, pp. 146-157.
    8. Mancini, E.A., Mink, R.M., Bearden, B.L., and Wilkerson, R.P., "Norphlet Formation (Upper Jurassic) of southwestern and offshore Alabama: Environments of deposition and petroleum geology," AAPG Bull., Vol. 69, 1985, pp. 881-898.
    9. Mink, R.M., Tew, B.H., Mann, S.D., Bearden, B.L., and Mancini, E.A., "Norphlet and pre-Norphlet geologic framework of Alabama and panhandle Florida coastal waters area and adjacent federal waters area," Geological Survey of Alabama Bull.140, 1990, 58 p.
    10. Vaughan, R.L., and Benson, D.J., "Diagenesis of the Upper Jurassic Norphlet Formation, Mobile and Baldwin Counties and offshore Alabama," GCAGS Transactions, Vol. 38, 1988, pp. 543-551.
    1. Dixon, S.A., Summers, D.M., and Surdam, R.C., "Diagenesis and reservation of porosity in Norphlet Formation (Upper Jurassic), southern Alabama," AAPG Bull. Vol. 73, 1989, pp. 707-728.
    2. Lock, B.E., and Broussard, S.W., "The Norphlet reservoir in Mobile Bay; origins of deep porosity," GCAGS Transactions, Vol. 39, 1989, pp. 187-194.
    3. Mancini, E.A., Mink, R.M., Tew, B.H., and Bearden, B.L., "Natural gas plays in Jurassic reservoirs of southwestern Alabama and the Florida panhandle area," GCAGS Transactions, Vol. 40, 1990, pp. 513-520.
    4. Florida Geological Survey, "2000 Florida oil and gas annual production report," 2001, 1 p.
    5. Bebout, D.G., and Seni, S.J., "Introduction to the Mesozoic plays," in Seni, S.J., Hentz, T.F., Kaiser, W.R., and Wermund, E.G., Jr., "Atlas of northern Gulf of Mexico gas and oil reservoirs," Vol. I, "Miocene and older reservoirs," Bureau of Economic Geology, University of Texas at Austin, 1997, p. 7.
    6. Mitchell-Tapping, H.J., "Exploration analysis of the Jurassic Apalachicola Embayment of Florida," GCAGS Transactions, Vol. 32, 1982, pp. 413-425.
    7. Baria, L.R., Stoudt, D.L., Harris, P.M., and Crevello, P.D., "Upper Jurassic reefs of Smackover Formation, United States Gulf Coast," AAPG Bull., Vol. 66, 1982, pp. 1,449-82.
    8. Crevello, P.D., and Harris, P.M., "Depositional models for Jurassic reefal buildups," in Ventress, W.P.S., Bebout, D.G., Perkins, B.F., and Moore, C.H., eds., "The Jurassic of the Gulf rim," SEPM Foundation Gulf Coast Section, 3. Annual Research Conference Proceedings, 1984, pp. 57-89.
    9. Azad, J., "Apalachicola embayment may be continent's last virgin oil basin," OGJ, Feb. 8, 1999, pp. 69-72.
    10. Mancini, E.A., Parcell, W.C., Benson, D.J., Chen, H., and Yang, W.T., "Geological and computer modeling of Upper Jurassic Smackover reef and carbonate shoal lithofacies, eastern Gulf coastal plain," GCAGS Transactions, Vol. 48, 1998, pp. 225-234.
    1. Lloyd, J.M., "1994 and 1995 Florida petroleum production and exploration," FGS Information Circulr 111, 1997, 62 p.
    2. Kopaska-Merkel, D.C., Mann, S.D., and Schmoker, J.W., "Controls on reservoir development in a shelf carbonate: Upper Jurassic Smackover Formation of Alabama," AAPG Bull., Vol. 78, 1994, pp. 938-958.
    3. Palacas, J.G., Daws, T.A., and Applegate, A.V., "Preliminary petroleum source-rock assessment of pre-Punta Gorda rocks (lowermost Cretaceous-Jurassic?) in South Florida," GCAGS Transactions, Vol. 31, 1981, pp. 369-376.
    4. Attilio, D.E., and Blake, B., "Petroleum potential, exploration possibilities of South Florida Basin, Florida Keys," OGJ, Nov. 7, 1983, pp. 148-153.
    5. Applegate, A.V., and Pontigo, F.A., "Stratigraphy and oil potential of the Lower Cretaceous Sunniland Formation in South Florida," FGS Report of Investigations 89, 1984, 40 p.
    6. Applegate, A.V., "The Brown Dolomite Zone of the Lehigh Acres Formation (Aptian) in the South Florida Basin-A potentially prolific producing horizon offshore," Florida Bureau of Geology Information Circular 104, Part II, 1987, pp. 46-66.
    7. Palacas, J.G., "Preliminary assessment of organic carbon content and petroleum source rock potential of Cretaceous and Lower Tertiary carbonates, South Florida Basin," GCAGS Transactions, Vol. 28, 1978, pp. 357-381.
    8. Palacas, J.G., Anders, D.E., and King, J.D., "South Florida Basin-A prime example of carbonate source rocks of petroleum," in Palacas, J.G., ed., "Petroleum geochemistry and source rock potential of carbonate rocks," AAPG Studies in Geology 18, 1984, pp. 71-96.
    9. Reel, D.A., and Griffin, G.M., "Potentially petroliferous trends in Florida as defined by geothermal gradients," GCAGS Transactions, Vol. 21, 1971, pp. 31-36.
    1. Wenger, L.M., Goodoff, L.R., Gruss, O.P., Harrison, S.C., and Hood, K.C., "Northern Gulf of Mexico: An integrated approach to source, maturation, and migration," First Joint AAPG/AMGP Research Conference, "Geological Aspects of Petroleum Systems," Mexico City, 1994, 5 p.
    2. Lloyd, J.M., and Applegate, A.V., "1985 Florida petroleum production and exploration," Florida Bureau of Geology Information Circular 104, 1987, 42 p.
    3. Applegate, A.V., and Lloyd, J.M., "Summary of Florida petroleum production and exploration, onshore and offshore, through 1984," FGS Information Circular 101, 1985, 66 p.
    4. Mitchell-Tapping, H.J., "Petrology and depositional environment of the Sunniland producing fields of south Florida," GCAGS Transactions, Vol. 34, 1984, pp. 157-173.
    5. Mitchell-Tapping, H.J., "Application of the tidal flat model to the Sunniland Formation of South Florida," GCAGS Transactions, Vol. 37, 1987, pp. 415-426.
    6. Tyler, A.N., and Erwin, W.L., "Sunoco-Felda field, Hendry and Collier counties, Florida," in Braunstein, J., ed., "North American oil and gas fields," AAPG Memoir 24, 1976, pp. 287-299.
    7. Means, J.A., "Southern Florida needs another look," OGJ, Jan. 31, 1977, pp. 212-225.
    8. Mitchell-Tapping, H.J., "Exploration petrology of the Sunoco Felda trend of south Florida," GCAGS Transactions, Vol. 36, 1986, pp. 241-256.
    9. Winston, G.O., "The Dollar Bay Formation of Lower Cretaceous (Fredericksburgian) age in South Florida; its stratigraphy and petroleum possibilities," Florida Bureau of Geology Special Publication 15, 1971, 99 p.
    10. Mitchell-Tapping, H.J., "New exploration play in Florida-The Fredericksburg Dollar Bay Formation," GCAGS Transactions, Vol. 40, 1990, pp. 607-621.
