Heat-stable salts reduce H2S leaking from amine absorbers

This article recounts our experiences with solution switching from diethanolamine (DEA) to methyldiethanolamine (MDEA) and the effects of HSSs generation on our system performance.

System performance

Shahid Hashemi Nejad (Khangiran) Gas Co. lies in northeast Iran, 40 km from the Turkmenistan border. The sour-gas sweetening facilities based on amine are designed to treat natural gas with about 10% acid gas from Mozdouran gas field (Fig. 1).

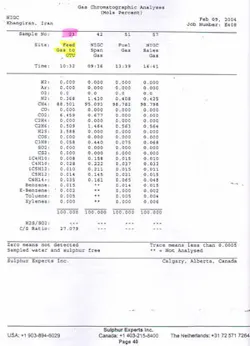

Feed gas composition for the Shahid Hasheminejad (Khangiran) Co. reflects sour-gas conditions (Fig. 1).

Each of three trains (Gas Treatment Units 1, 2, and 3) was designed to treat 346,000 normal cu m/hr (300 MMscfd) sour gas with 910 cu m/hr DEA and constructed about 30 years ago.

Two trains, GTU Nos. 4 and 5, were added 5 years ago and are identical with previous trains. All were operating with DEA as solvent. A year ago after experimental stages, all trains were switched from DEA to MDEA.

Operating on MDEA allows Khangiran to process 420,000 std. cu m/hr of sour gas with 890 cu m/hr MDEA. Analytical data were measured by Sulfur Experts Inc., Calgary, at the Khangiran plant.

The amine facilities at Khangiran are designed to treat natural gas by DEA as the amine solvent. About 3 years ago, one unit was switched from DEA to MDEA and, following an analysis of the results, other units were also switched. The performance of the units using MDEA has been better than those using DEA. (Some parameters include corrosion, energy consumption, amine circulation rate, and selectivity.)

But at every unit, the initial performance of fresh MDEA at absorbing H₂S in the contactors was less than desirable. Over time, however, the performance of absorber (H₂S removal from the natural gas) and regenerator (acid-gas loadings in lean amine) improved and stabilized.

Figs. 2 and 3 show acid-gas loading, H₂S content of lean MDEA, and the amount of H₂S in treated gas during 1 year of operation. Comparing two unit operations at the same conditions shows that the unit performance can improve over time. One unit with fresh (Unit No. 4) and another with 1-year-old MDEA (Unit No. 5) were kept in similar circumstances for 1 week. Feed (sour gas), amine-circulation ratio, lean-amine temperature to absorbers and reboiler steam consumption were roughly equal.

Fig. 4 shows the consequences of this experiment. The 1-year-old MDEA in Unit No. 5 has been more effective than fresh MDEA in Unit No. 4. The amount of HSS was 1.11% in Unit 5 and 0.39% in Unit No. 4 solvent.

These data were measured by an on site laboratory. Amine Experts, Calgary, also tests our amine solutions and confirmed that HSSs increase over time.

Improving H₂S removal

Consider a tertiary amine as an example.

When ionization of H₂S in water is combined with proton acceptance by the amine, the net overall reaction is: H₂S + RN ↔ RNH⁺ +HS^-. The equilibrium constant for the reaction is K = (RNH⁺) (HS^-)/(RN) (H₂S).

It can be seen that if the concentration of the protonated form of the amine is increased, the concentration of HS^- will decrease in proportion, i.e., in the regenerator, the H₂S loading will drop.

This has the greatest potential impact at very low loadings because here is where the protonated amine concentration normally would be quite small (e.g., 0.001 mole/mole) but has been artificially made quite large. Consequently, there is a dramatically decreased equilibrium concentration of HS^- in solution and, therefore, a dramatic decrease in solution loading with respect to H₂S.

The reaction equilibrium has been shifted towards much lower H₂S loadings. This can lead to a regenerated solvent with more than an order-of-magnitude lower H₂S loading and, therefore, with the ability to remove H₂S to much lower levels.

The effect is very pronounced at the lean end of the regenerator (especially the reboiler) where the protonated amine and HS^- concentrations are already fairly small. Here, artificially enhancing the protonated amine concentration from a very small value to a relatively very large one results in a very large decrease in H₂S loading of the lean solvent.

It is remarkable that there is a similar reduction in residual CO₂ loadings because protonated amine is also a component in CO₂ reaction equilibrium. Although tertiary amines do not react directly with CO₂, they act as proton acceptors and can therefore take part in CO₂ reaction equilibrium CO₂ + RN + H₂O ↔ RNH⁺ + HCO₃^-.

The reaction equilibrium constant is K = (RNH⁺) (HCO₃^-)/(RN) (CO₂) (H₂O).

Independently increasing the protonated amine concentration, especially at low loadings where the concentration of this species is normally quite small, will require a substantial decrease in the already-small HCO₃^- ion concentration to balance it.
